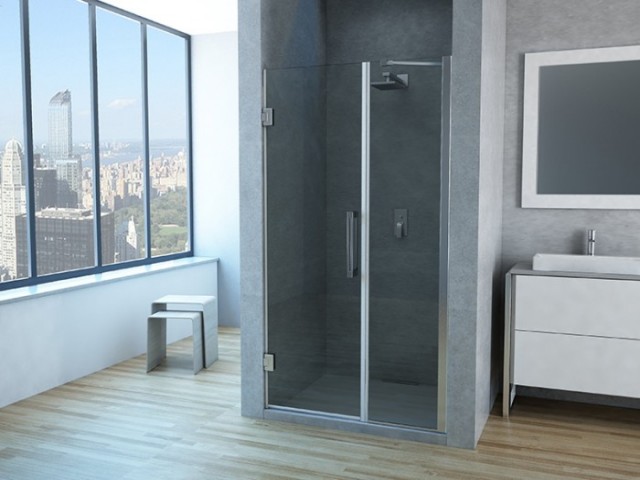

VANTO - Hinge Pivot Door

Product Description

    This hinge pivot door collection is extremely versatile and offers a range of sizes that will accommodate opens from 22” to 60” in width. Therefore, this option can transform any area into a modern showering experience that may have some space limitations.



  • Polished aluminum wall jamb
  • Brass hinge
  • Polished stainless steel handle
  • Polished stainless steel brace bar
  • 3/8 in. (10 mm) thick SGCC certified clear tempered glass
  • Include easy clean protective coating
  • Fixed panel may be extened up to 1 in. for width (perpendicular) adjustment
  • Frameless glass design
  • Model consists of one swing door and one stationary inline panel
  • Reversible for a right or left door opening
  • Finished walls are required for accurate shower opening width measurement
  • Must be installed on tile or solid surface
  • Wall studs or other reinforcement behind finished walls required for installation
  • Professional installation required

Features and specifications
Product code: Width (min-max): Height: Opening wide: Shower Base Optional:
L3SD42241872-CH-10CL 42” - 43” (D24+P18) 72” 21 5/8” -
L3SD43251872-CH-10CL 43” - 44” (D25+P18) 72” 22 5/8” -
L3SD44261872-CH-10CL 44” - 45” (D26+P18) 72” 23 5/8” -
L3SD45271872-CH-10CL 45” - 46” (D27+P18) 72” 24 5/8” -
L3SD46281872-CH-10CL 46” - 47” (D28+P18) 72” 25 5/8” 48” x 36” x 3 1/2”
L3SD47291872-CH-10CL 47” - 48” (D29+P18) 72” 26 5/8” -
L3SD48301872-CH-10CL 48” - 49” (D30+P18) 72” 27 5/8” -
